| Type | Description |
|---|---|
| Series: | - |
| Package: | Tape & Reel (TR) |
| Part Status: | Active |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 30 V |
| Current - Continuous Drain (Id) @ 25°C: | 35A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 5.2mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id: | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs: | 14 nC @ 4.5 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 2180 pF @ 10 V |
| FET Feature: | - |
| Power Dissipation (Max): | 40W (Tc) |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 8-WPAK |
| Package / Case: | 8-PowerWDFN |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of RJK0353DPA-01#J0B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
MOSFET P-CH 60V 5.3A TO220-3
MOSFET N-CH 150V 5A TO220F

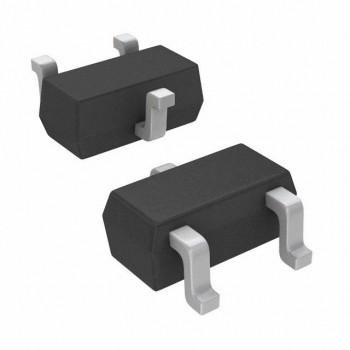

MOSFET P-CH 20V 155MA SC75A
