FF1800R12IE5BPSA1

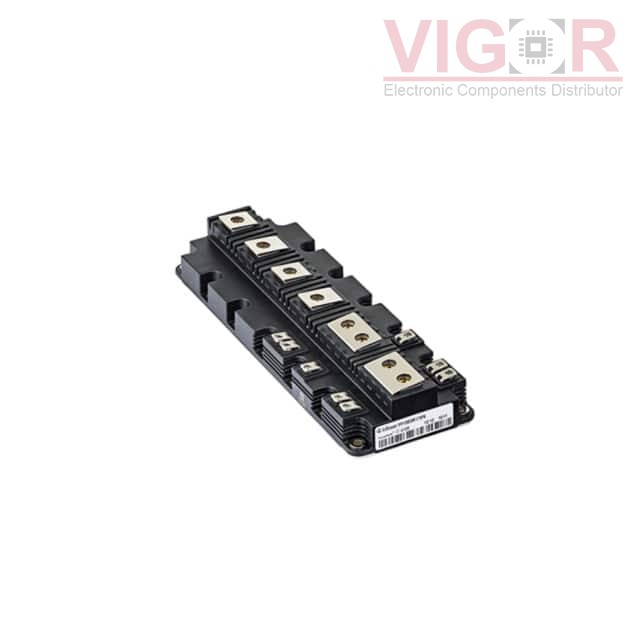

Image is for reference,
please contact us to get the real picture

Part No :: FF1800R12IE5BPSA1

Manufacturer: IR (Infineon Technologies)

Description: IGBT MOD 1200V 1800A 20MW

Catalog: Transistors - IGBTs - Modules

DataSheet: FF1800R12IE5BPSA1 PDF

Availability: 2 pieces

Unit Price: ~~$1739.73000~~

Current price of FF1800R12IE5BPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FF1800R12IE5BPSA1 Specifications

Type	Description
Series:	PrimePACK™3+
Package:	Tray
Part Status:	Active
IGBT Type:	Trench Field Stop
Configuration:	2 Independent
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	1800 A
Power - Max:	20 mW
Vce(on) (Max) @ Vge, Ic:	2.15V @ 15V, 1800A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	98.5 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

Please confirm the specifications of the products when ordering.
