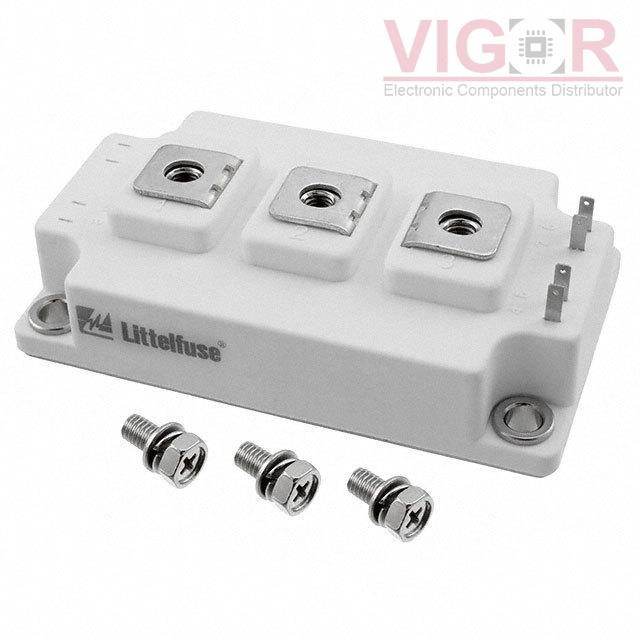

MG12200D-BN2MM

Part No :: MG12200D-BN2MM

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2986734

Description: IGBT MODULE 1200V 290A 1050W D3

Catalog: Transistors - IGBTs - Modules

DataSheet: MG12200D-BN2MM PDF

Country of origin: -

Date code: -

MG12200D-BN2MM Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	290 A
Power - Max:	1050 W
Vce(on) (Max) @ Vge, Ic:	1.7V @ 15V, 200A (Typ)
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	14 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	D3
