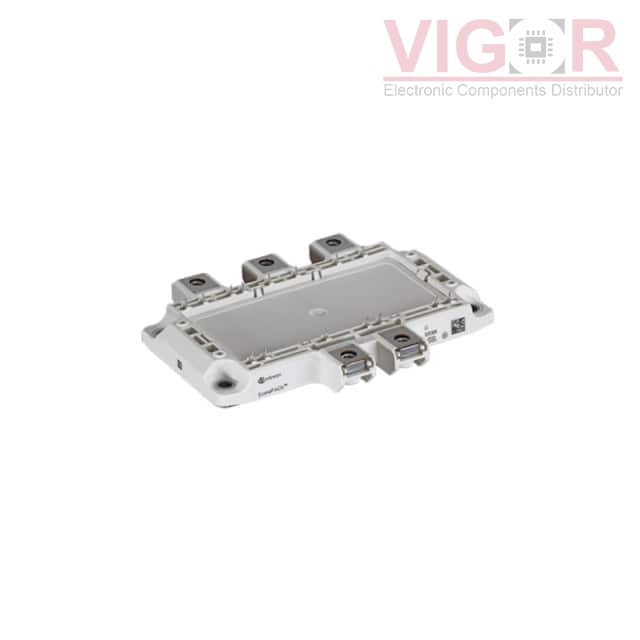

F3L200R07PE4BOSA1

Image is for reference,
please contact us to get the real picture

Part No :: F3L200R07PE4BOSA1

Manufacturer: VIGOR

Description: F3L200R07 - IGBT MODULE

Catalog: Transistors - IGBTs - Modules

DataSheet: F3L200R07PE4BOSA1 PDF

Availability: 7 pieces

Unit Price: ~~$132.26000~~

Current price of F3L200R07PE4BOSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

F3L200R07PE4BOSA1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
IGBT Type:	Trench Field Stop
Configuration:	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	200 A
Power - Max:	680 W
Vce(on) (Max) @ Vge, Ic:	1.95V @ 15V, 200A
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	12.5 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module
