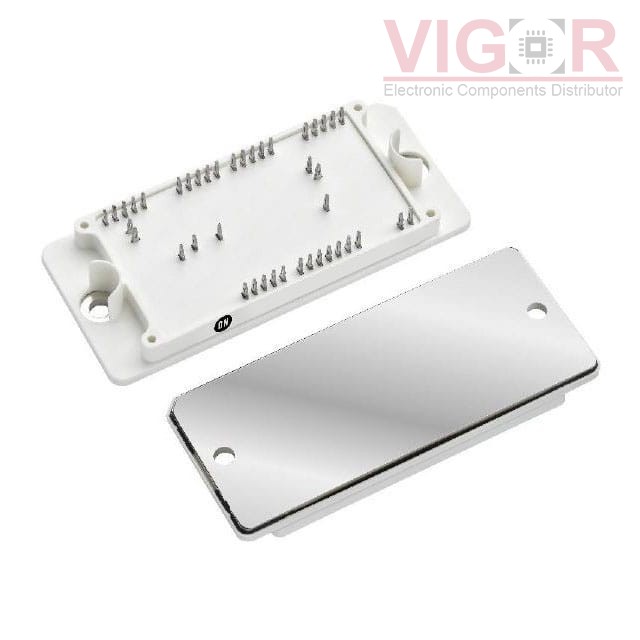

NXH350N100H4Q2F2P1G

Part No :: NXH350N100H4Q2F2P1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4619610

Description: IC PWR MODULE 1000V 350A PIM42

Catalog: Transistors - IGBTs - Modules

DataSheet: NXH350N100H4Q2F2P1G PDF

Country of origin: -

Date code: -

NXH350N100H4Q2F2P1G Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
IGBT Type:	Trench Field Stop
Configuration:	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max):	1000 V
Current - Collector (Ic) (Max):	303 A
Power - Max:	276 W
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 375A
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	24.146 nF @ 20 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	42-PIM/Q2PACK (93x47)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 31 - Jan 04 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of NXH350N100H4Q2F2P1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

IXEN60N120D1

IGBT MOD 1200V 100A 445W SOT227B

CM200DU-12NFH

IGBT MOD 600V 200A 590W

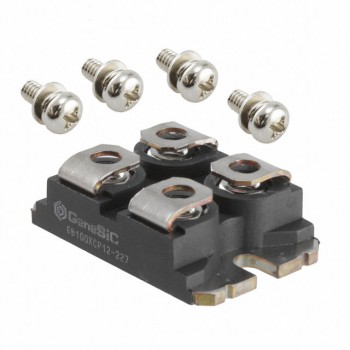

GB100XCP12-227
