APTGT100A120D1G

Part No :: APTGT100A120D1G

Manufacturer: Microsemi

VIGOR # :: 4619810

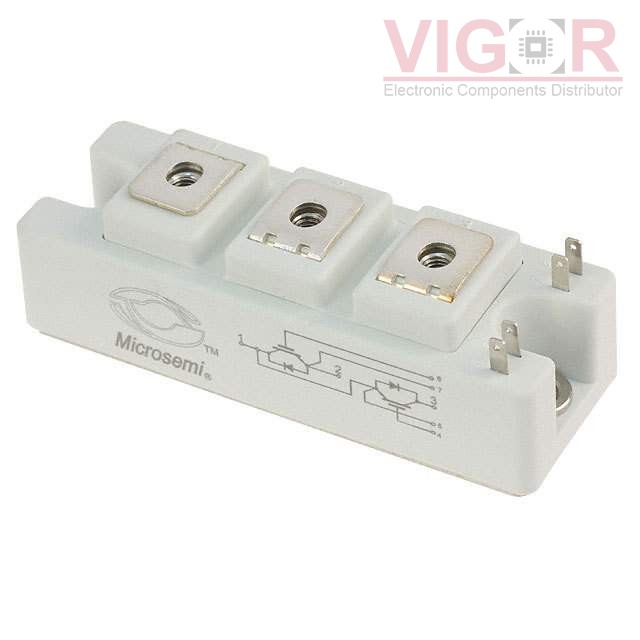

Description: IGBT MODULE 1200V 150A 520W D1

Catalog: Transistors - IGBTs - Modules

DataSheet: APTGT100A120D1G PDF

Country of origin: -

Date code: -

APTGT100A120D1G Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
IGBT Type:	Trench Field Stop
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	150 A
Power - Max:	520 W
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 100A
Current - Collector Cutoff (Max):	3 mA
Input Capacitance (Cies) @ Vce:	7 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	D1
Supplier Device Package:	D1
