IXYA20N120B4HV

Part No :: IXYA20N120B4HV

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2913843

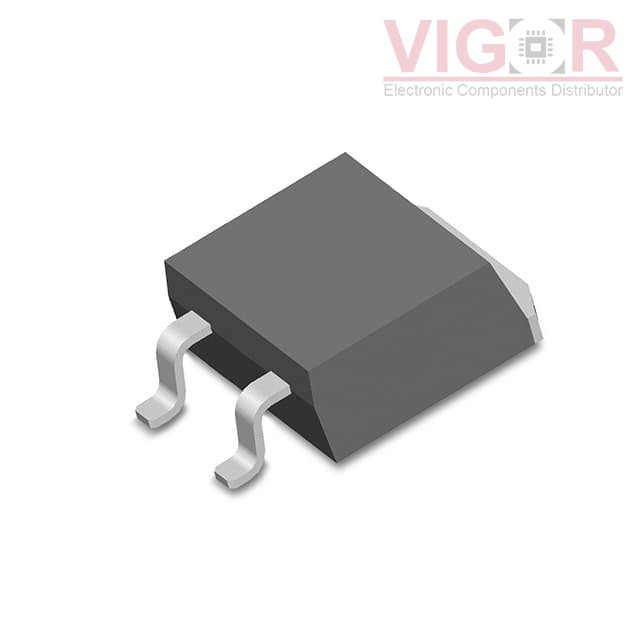

Description: IGBT 1200V 20A GENX4 XPT TO263D2

Catalog: Transistors - IGBTs - Single

DataSheet: IXYA20N120B4HV PDF

Country of origin: -

Date code: -

IXYA20N120B4HV Specifications

Type	Description
Series:	GenX4™, XPT™
Package:	Tube
Part Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	76 A
Current - Collector Pulsed (Icm):	130 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 20A
Power - Max:	375 W
Switching Energy:	3.9mJ (on), 1.6mJ (off)
Input Type:	Standard
Gate Charge:	44 nC
Td (on/off) @ 25°C:	15ns/200ns
Test Condition:	960mV, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	47 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	TO-263HV
