IXYT55N120A4HV

Part No :: IXYT55N120A4HV

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2914010

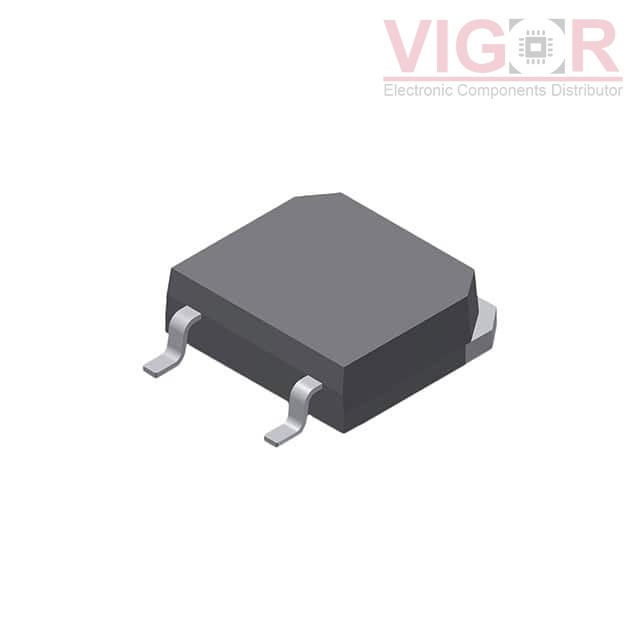

Description: IGBT GENX4 1200V 55A TO268HV

Catalog: Transistors - IGBTs - Single

DataSheet: IXYT55N120A4HV PDF

Country of origin: -

Date code: -

IXYT55N120A4HV Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	175 A
Current - Collector Pulsed (Icm):	350 A
Vce(on) (Max) @ Vge, Ic:	1.8V @ 15V, 55A
Power - Max:	650 W
Switching Energy:	2.3mJ (on), 5.3mJ (off)
Input Type:	Standard
Gate Charge:	110 nC
Td (on/off) @ 25°C:	23ns/300ns
Test Condition:	600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr):	35 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:	TO-268HV
