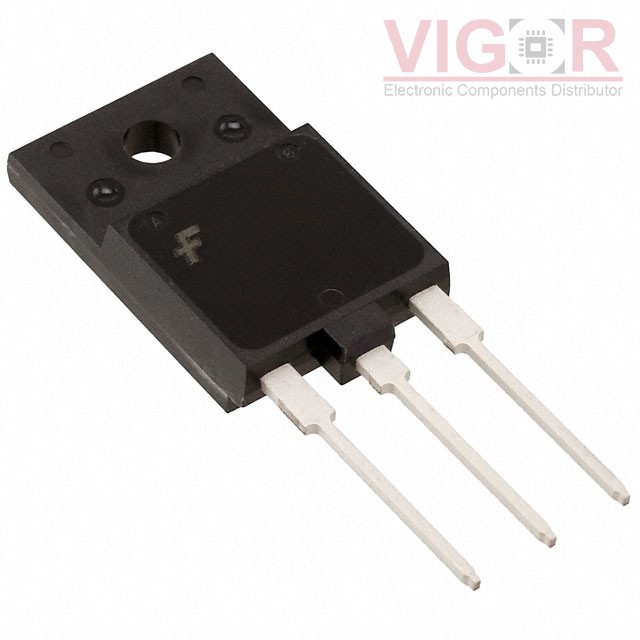

FGAF20N60SMD

Part No :: FGAF20N60SMD

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2914108

Description: IGBT FIELD STOP 600V 40A TO3PF

Catalog: Transistors - IGBTs - Single

DataSheet: FGAF20N60SMD PDF

Country of origin: -

Date code: -

FGAF20N60SMD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	1.7V @ 15V, 20A
Power - Max:	75 W
Switching Energy:	452µJ (on), 141µJ (off)
Input Type:	Standard
Gate Charge:	64 nC
Td (on/off) @ 25°C:	12ns/91ns
Test Condition:	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	26.7 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3 Full Pack
Supplier Device Package:	TO-3PF
