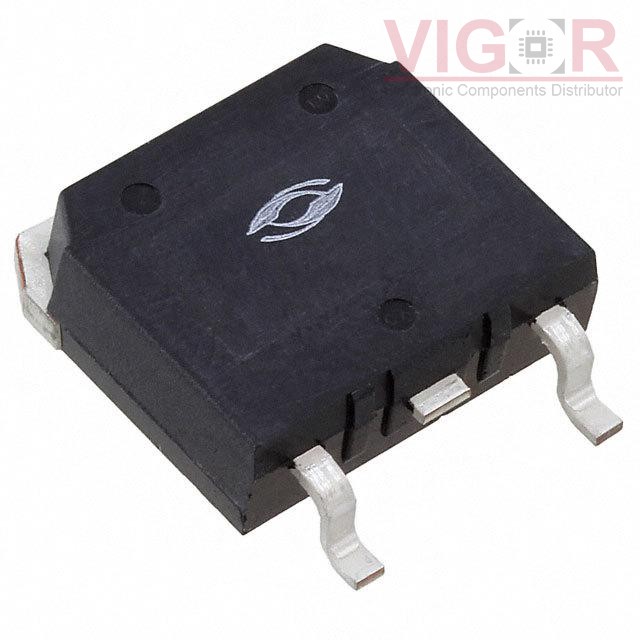

APT36GA60SD15

Part No :: APT36GA60SD15

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2914169

Description: IGBT PT COMBI 600V 36A TO-268

Catalog: Transistors - IGBTs - Single

DataSheet: APT36GA60SD15 PDF

Country of origin: -

Date code: -

APT36GA60SD15 Specifications

Type	Description
Series:	POWER MOS 8®
Package:	Tube
Part Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	65 A
Current - Collector Pulsed (Icm):	109 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 20A
Power - Max:	290 W
Switching Energy:	307µJ (on), 254µJ (off)
Input Type:	Standard
Gate Charge:	102 nC
Td (on/off) @ 25°C:	16ns/122ns
Test Condition:	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	19 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:	D3PAK

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 210

Shipped from

HK warehouse

Expected Shipping Date

Apr 07 - Apr 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.1800~~	~~$6.18~~

Current price of APT36GA60SD15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

IRGP4750D-EPBF

IGBT W/ULTRAFAST SOFT RECOVERY D

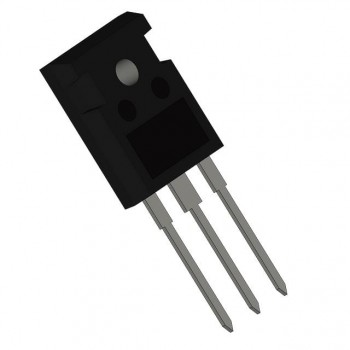

IKQ75N120CT2XKSA1
