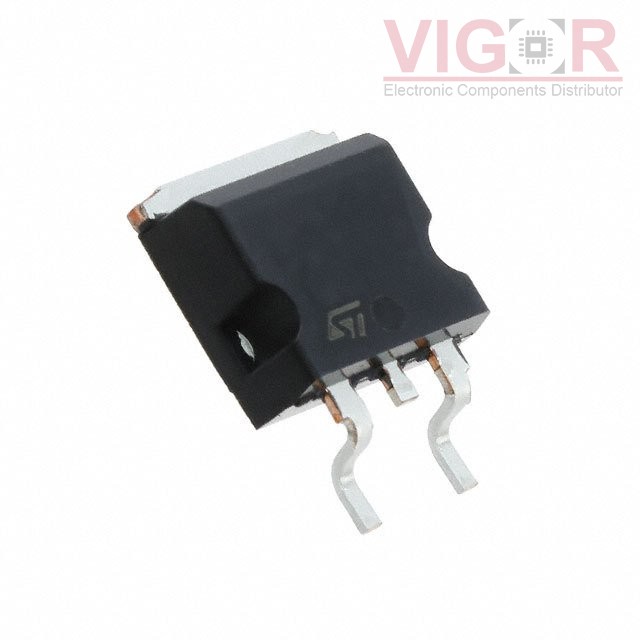

STGB20N45LZAG

Part No :: STGB20N45LZAG

Manufacturer: STMicroelectronics

VIGOR # :: 2914248

Description: POWER TRANSISTORS

Catalog: Transistors - IGBTs - Single

DataSheet: STGB20N45LZAG PDF

Country of origin: -

Date code: -

STGB20N45LZAG Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	450 V
Current - Collector (Ic) (Max):	25 A
Current - Collector Pulsed (Icm):	50 A
Vce(on) (Max) @ Vge, Ic:	1.25V @ 4V, 6A
Power - Max:	150 W
Switching Energy:	-
Input Type:	Logic
Gate Charge:	26 nC
Td (on/off) @ 25°C:	1.1µs/4.6µs
Test Condition:	300V, 10A, 1kOhm, 5V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D²PAK
