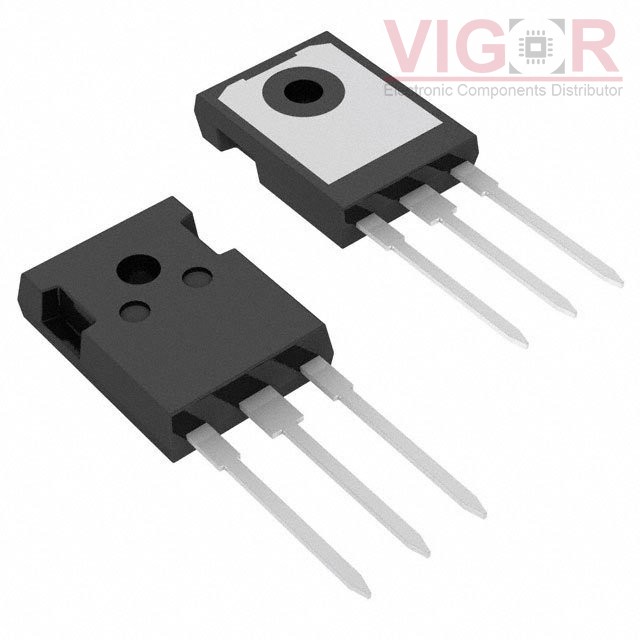

IXYH20N120C3D1

Product image
Product thumb
Part No :

IXYH20N120C3D1

Manufacturer
Wickmann / Littelfuse
VIGOR # :

2914287

Description
IGBT 1200V 36A 230W TO-247AD
Catalog
Transistors - IGBTs - Single
DataSheet
IXYH20N120C3D1 PDF
Country of origin
-
Date code
-
ads
IXYH20N120C3D1 Specifications
Type Description
Series:GenX3™, XPT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):36 A
Current - Collector Pulsed (Icm):88 A
Vce(on) (Max) @ Vge, Ic:3.4V @ 15V, 20A
Power - Max:230 W
Switching Energy:1.3mJ (on), 500µJ (off)
Input Type:Standard
Gate Charge:53 nC
Td (on/off) @ 25°C:20ns/90ns
Test Condition:600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):195 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247 (IXYH)
