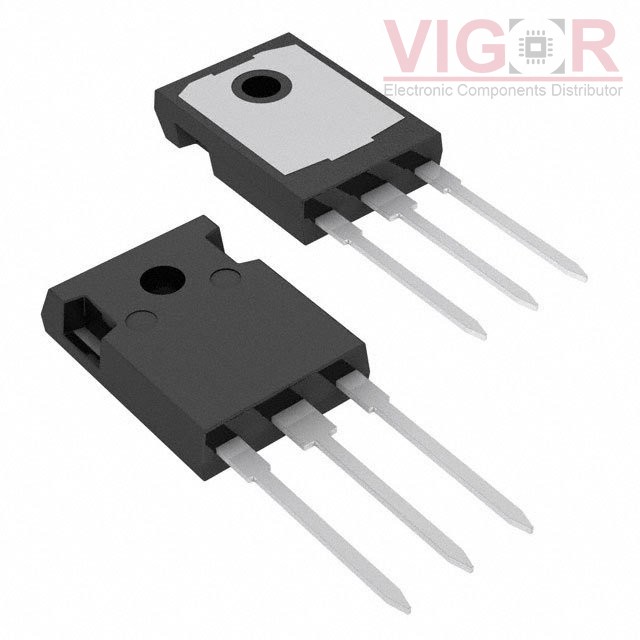

STGWA40H120F2

Part No :: STGWA40H120F2

Manufacturer: STMicroelectronics

VIGOR # :: 2914396

Description: IGBT BIPO 1200V 40A TO247-3

Catalog: Transistors - IGBTs - Single

DataSheet: STGWA40H120F2 PDF

Country of origin: -

Date code: -

STGWA40H120F2 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2.6V @ 15V, 40A
Power - Max:	468 W
Switching Energy:	1mJ (on), 1.32mJ (off)
Input Type:	Standard
Gate Charge:	158 nC
Td (on/off) @ 25°C:	18ns/152ns
Test Condition:	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads
