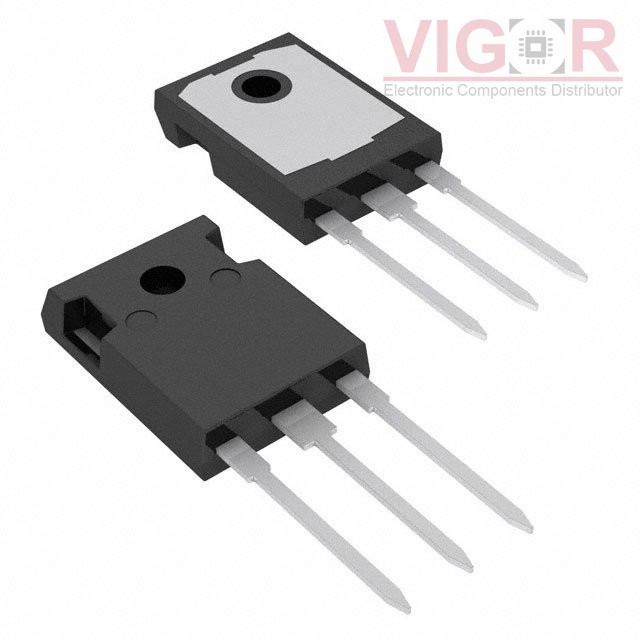

STGWA40H120DF2

Product image
Product thumb
Part No :

STGWA40H120DF2

Manufacturer
STMicroelectronics
VIGOR # :

2914523

Description
TRENCH GATE IGBT TO247 PKG
Catalog
Transistors - IGBTs - Single
DataSheet
STGWA40H120DF2 PDF
Country of origin
-
Date code
-
ads
STGWA40H120DF2 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.6V @ 15V, 40A
Power - Max:468 W
Switching Energy:1mJ (on), 1.32mJ (off)
Input Type:Standard
Gate Charge:158 nC
Td (on/off) @ 25°C:18ns/152ns
Test Condition:600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):488 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 459
Shipped from
HK warehouse
Expected Shipping Date
Dec 27 - Dec 31 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $9.33 $9.33
30 $8.13 $244.04
120 $7.15 $858.00
510 $6.31 $3 218.82
1020 $5.58 $5 693.82

Current price of STGWA40H120DF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
SGP5N60RUFTU

SGP5N60RUFTU

IGBT, 8A, 600V, N-CHANNEL

IXXH30N60C3D1

IXXH30N60C3D1

IGBT 600V 60A 270W TO247

STGW40H120F2

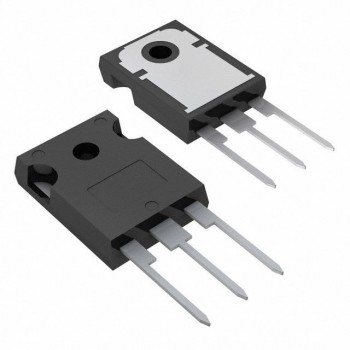

STGW40H120F2
