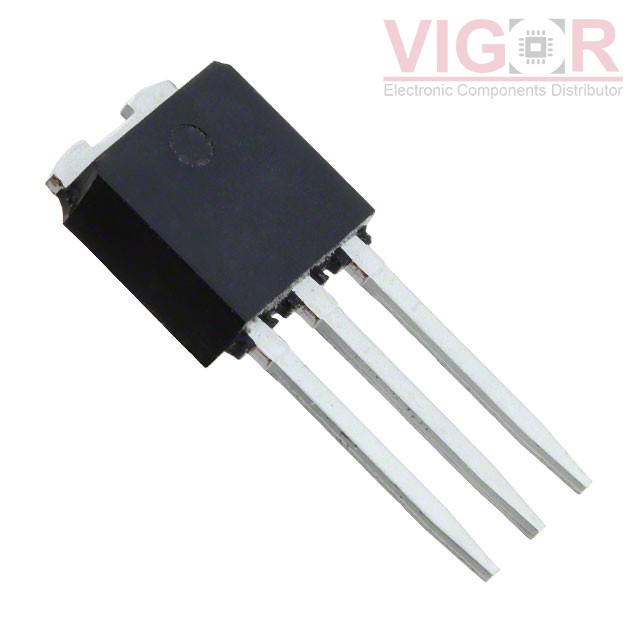

STGD5NB120SZ-1

Product image
Product thumb
Part No :

STGD5NB120SZ-1

Manufacturer
STMicroelectronics
VIGOR # :

2914619

Description
IGBT 1200V 10A 75W IPAK
Catalog
Transistors - IGBTs - Single
DataSheet
STGD5NB120SZ-1 PDF
Country of origin
-
Date code
-
ads
STGD5NB120SZ-1 Specifications
Type Description
Series:PowerMESH™
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):10 A
Current - Collector Pulsed (Icm):10 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 5A
Power - Max:75 W
Switching Energy:2.59mJ (on), 9mJ (off)
Input Type:Standard
Gate Charge:-
Td (on/off) @ 25°C:690ns/12.1µs
Test Condition:960V, 5A, 1kOhm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:I-PAK
