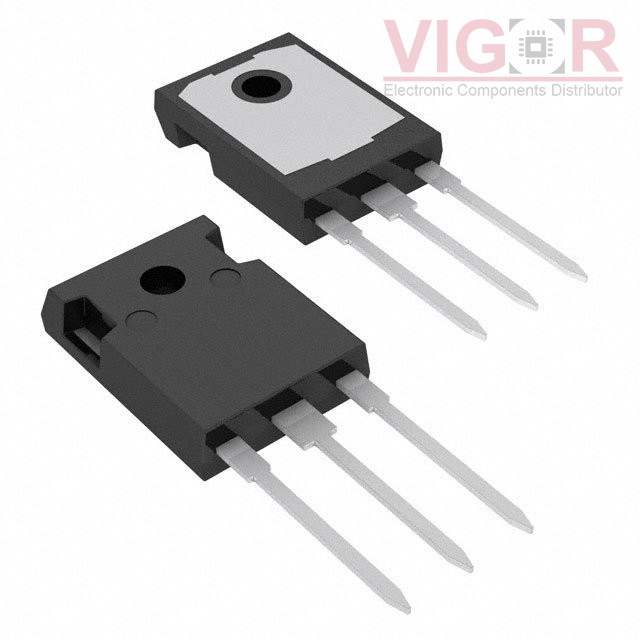

STGWA15M120DF3

Part No :: STGWA15M120DF3

Manufacturer: STMicroelectronics

VIGOR # :: 2914628

Description: IGBT 1200V 30A 259W

Catalog: Transistors - IGBTs - Single

DataSheet: STGWA15M120DF3 PDF

Country of origin: -

Date code: -

STGWA15M120DF3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	30 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 15A
Power - Max:	259 W
Switching Energy:	550µJ (on), 850µJ (off)
Input Type:	Standard
Gate Charge:	53 nC
Td (on/off) @ 25°C:	26ns/122ns
Test Condition:	600V, 15A, 22Ohm, 15V
Reverse Recovery Time (trr):	270 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads
