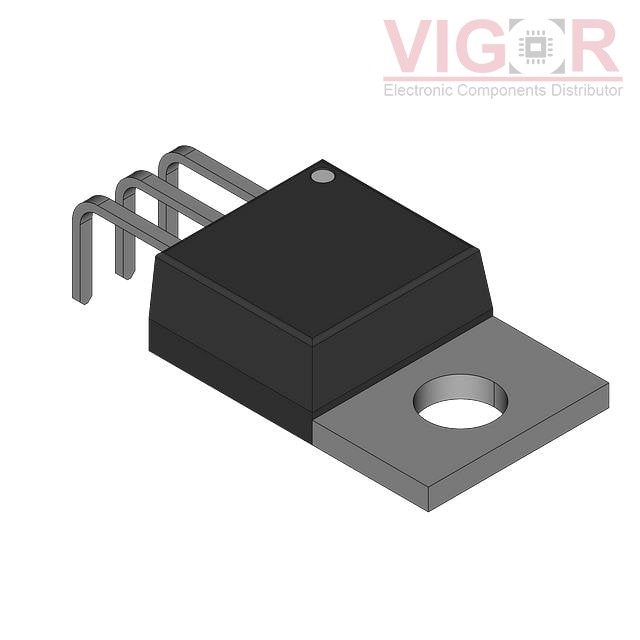

SGP10N60A

Part No :: SGP10N60A

Manufacturer: VIGOR

VIGOR # :: 2914678

Description: IGBT, 20A, 600V, N-CHANNEL

Catalog: Transistors - IGBTs - Single

DataSheet: SGP10N60A PDF

Country of origin: -

Date code: -

SGP10N60A Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
IGBT Type:	NPT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	20 A
Current - Collector Pulsed (Icm):	40 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 10A
Power - Max:	92 W
Switching Energy:	320µJ
Input Type:	Standard
Gate Charge:	52 nC
Td (on/off) @ 25°C:	28ns/178ns
Test Condition:	400V, 10A, 25Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	PG-TO220-3
