APT15GN120BDQ1G

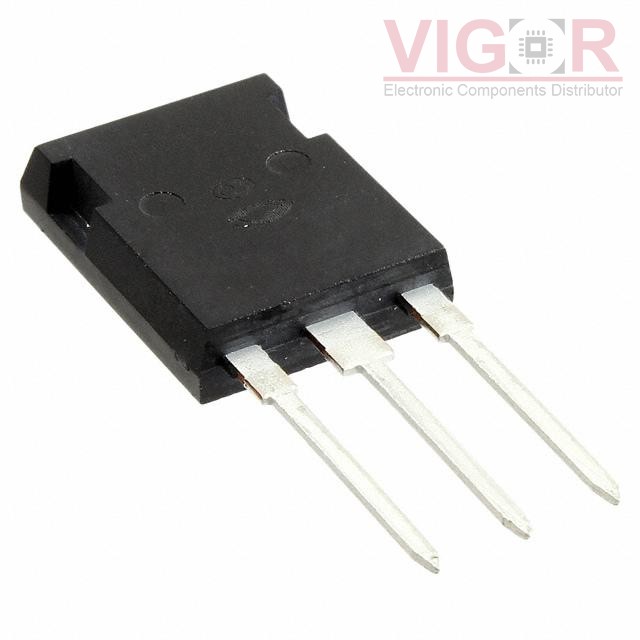

Part No :: APT15GN120BDQ1G

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2914708

Description: IGBT 1200V 45A 195W TO247

Catalog: Transistors - IGBTs - Single

DataSheet: APT15GN120BDQ1G PDF

Country of origin: -

Date code: -

APT15GN120BDQ1G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	45 A
Current - Collector Pulsed (Icm):	45 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 15A
Power - Max:	195 W
Switching Energy:	410µJ (on), 950µJ (off)
Input Type:	Standard
Gate Charge:	90 nC
Td (on/off) @ 25°C:	10ns/150ns
Test Condition:	800V, 15A, 4.3Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 [B]
