MIW40N120-BP

Part No :: MIW40N120-BP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 2914838

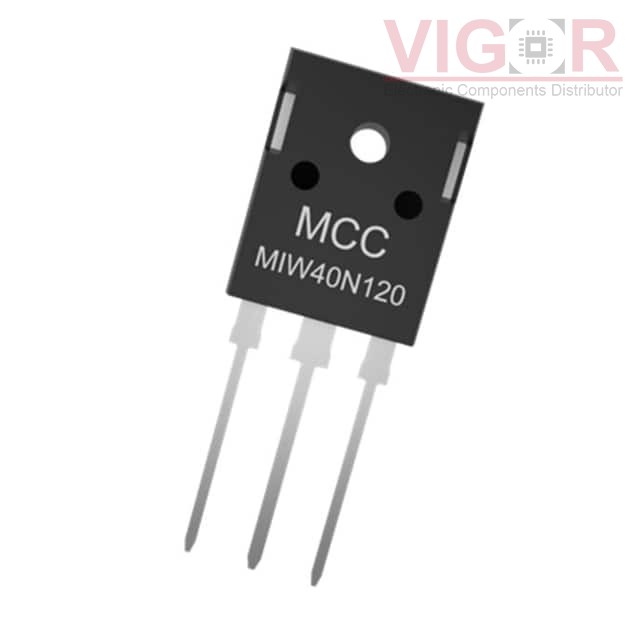

Description: IGBT 1200V 40A TO-247

Catalog: Transistors - IGBTs - Single

DataSheet: MIW40N120-BP PDF

Country of origin: -

Date code: -

MIW40N120-BP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 40A
Power - Max:	277 W
Switching Energy:	3.3mJ (on), 1.4mJ (off)
Input Type:	Standard
Gate Charge:	239 nC
Td (on/off) @ 25°C:	62ns/265ns
Test Condition:	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):	80 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247
