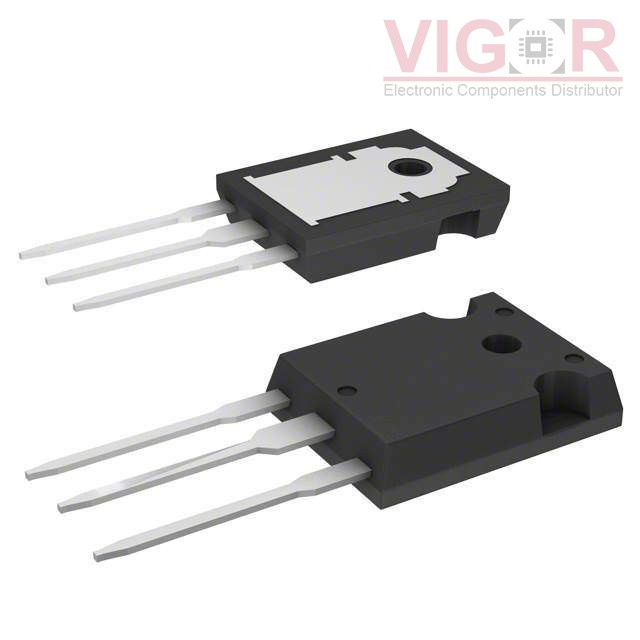

STGW8M120DF3

Part No :: STGW8M120DF3

Manufacturer: STMicroelectronics

VIGOR # :: 2914920

Description: TRENCH GATE FIELD-STOP IGBT M SE

Catalog: Transistors - IGBTs - Single

DataSheet: STGW8M120DF3 PDF

Country of origin: -

Date code: -

STGW8M120DF3 Specifications

Type	Description
Series:	M
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	16 A
Current - Collector Pulsed (Icm):	32 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 8A
Power - Max:	167 W
Switching Energy:	390µJ (on), 370µJ (Off)
Input Type:	Standard
Gate Charge:	32 nC
Td (on/off) @ 25°C:	20ns/126ns
Test Condition:	600V, 8A, 33Ohm, 15V
Reverse Recovery Time (trr):	103 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3
