STGW80H65DFB-4

STGW80H65DFB-4

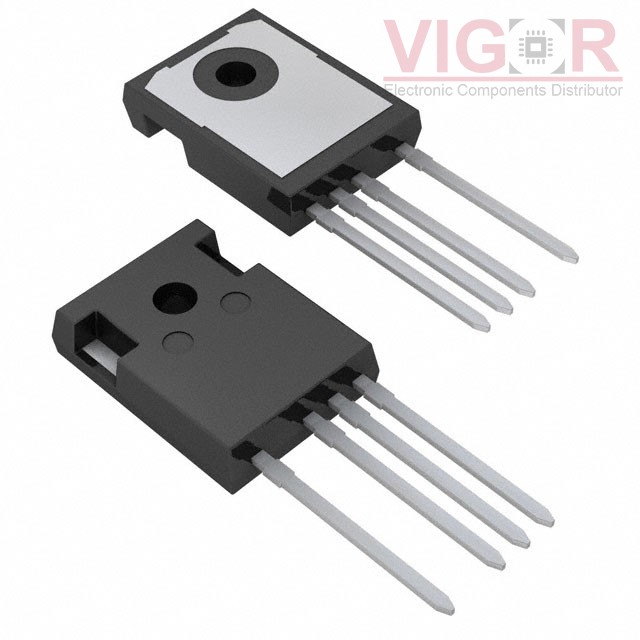

Image is for reference,
please contact us to get the real picture

Part No :

STGW80H65DFB-4

Manufacturer
STMicroelectronics
Description
IGBT BIPO 650V 80A TO247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2025
DataSheet
STGW80H65DFB-4 PDF
Availability
30 pieces
Unit Price
$32.00000

Current price of STGW80H65DFB-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW80H65DFB-4 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):120 A
Current - Collector Pulsed (Icm):240 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 80A
Power - Max:469 W
Switching Energy:2.1mJ (on), 1.5mJ (off)
Input Type:Standard
Gate Charge:414 nC
Td (on/off) @ 25°C:84ns/280ns
Test Condition:400V, 80A, 10Ohm, 15V
Reverse Recovery Time (trr):85 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:TO-247-4L
