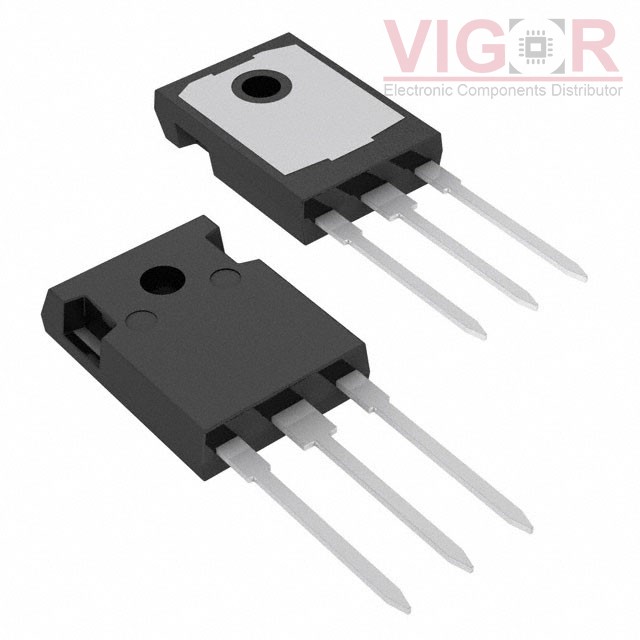

STGWA100H65DFB2

Part No :: STGWA100H65DFB2

Manufacturer: STMicroelectronics

VIGOR # :: 2915199

Description: TRENCH GATE FIELD-STOP, 650 V, 1

Catalog: Transistors - IGBTs - Single

DataSheet: STGWA100H65DFB2 PDF

Country of origin: -

Date code: -

STGWA100H65DFB2 Specifications

Type	Description
Series:	HB2
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	145 A
Current - Collector Pulsed (Icm):	300 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 100A
Power - Max:	441 W
Switching Energy:	2.2mJ (on), 1.4mJ (off)
Input Type:	Standard
Gate Charge:	288 nC
Td (on/off) @ 25°C:	30ns/130ns
Test Condition:	400V, 100A, 2.2Ohm, 15V
Reverse Recovery Time (trr):	123 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads
