RGTH80TK65DGC11

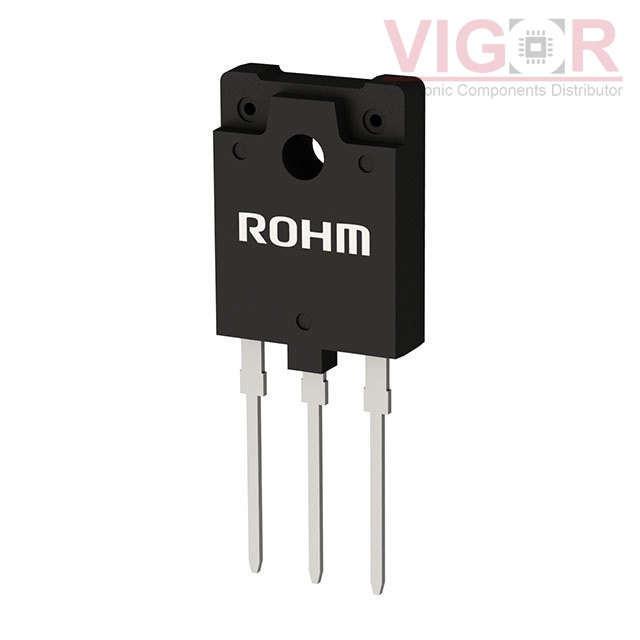

Product image
Product thumb
Part No :

RGTH80TK65DGC11

Manufacturer
ROHM Semiconductor
VIGOR # :

2915213

Description
IGBT
Catalog
Transistors - IGBTs - Single
DataSheet
RGTH80TK65DGC11 PDF
Country of origin
-
Date code
-
ads
RGTH80TK65DGC11 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):31 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 40A
Power - Max:66 W
Switching Energy:-
Input Type:Standard
Gate Charge:79 nC
Td (on/off) @ 25°C:34ns/120ns
Test Condition:400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):58 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3PFM, SC-93-3
Supplier Device Package:TO-3PFM
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 450
Shipped from
HK warehouse
Expected Shipping Date
Jan 03 - Jan 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.90 $5.90

Current price of RGTH80TK65DGC11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
APT75GN60LDQ3G

APT75GN60LDQ3G

IGBT 600V 155A 536W TO264

IKB40N65EH5ATMA1

IKB40N65EH5ATMA1

40A 650V TRENCHSTOP5 FAST H5 IGB

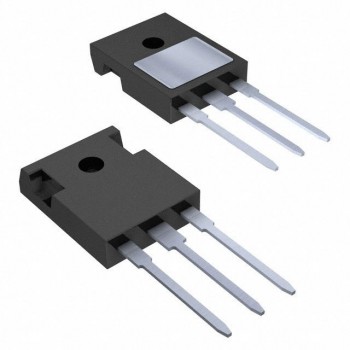

IXYJ20N120C3D1
