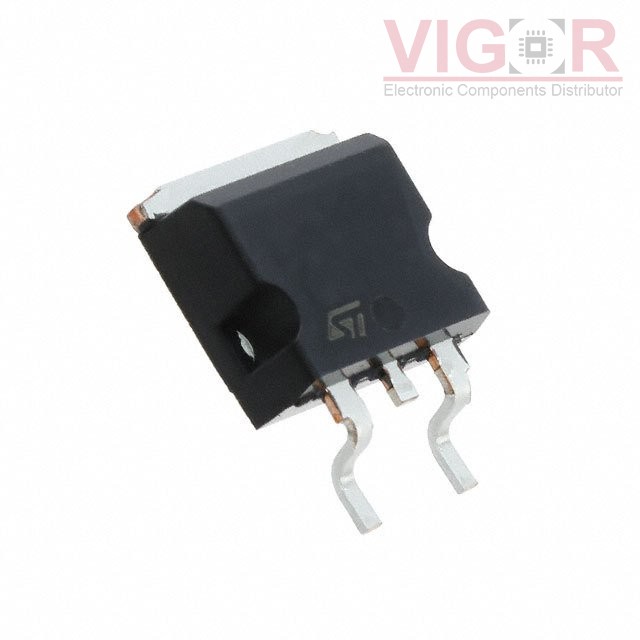

STGB5H60DF

Part No :: STGB5H60DF

Manufacturer: STMicroelectronics

VIGOR # :: 2915266

Description: TRENCH GATE FIELD-STOP IGBT, H S

Catalog: Transistors - IGBTs - Single

DataSheet: STGB5H60DF PDF

Country of origin: -

Date code: -

STGB5H60DF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	10 A
Current - Collector Pulsed (Icm):	20 A
Vce(on) (Max) @ Vge, Ic:	1.95V @ 15V, 5A
Power - Max:	88 W
Switching Energy:	56µJ (on), 78.5µJ (off)
Input Type:	Standard
Gate Charge:	43 nC
Td (on/off) @ 25°C:	30ns/140ns
Test Condition:	400V, 5A, 47Ohm, 15V
Reverse Recovery Time (trr):	134.5 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
