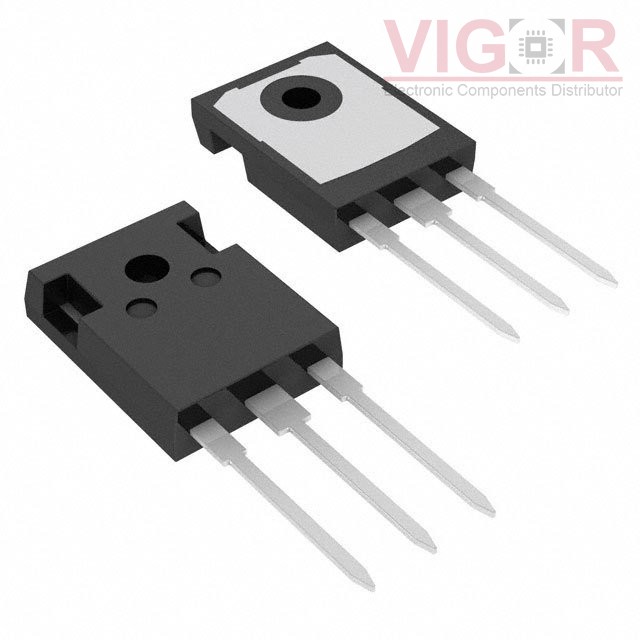

FGH40N60SMD-F085

Part No :: FGH40N60SMD-F085

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2915342

Description: IGBT 600V 80A 349W TO-247-3

Catalog: Transistors - IGBTs - Single

DataSheet: FGH40N60SMD-F085 PDF

Country of origin: -

Date code: -

FGH40N60SMD-F085 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tube
Part Status:	Active
IGBT Type:	Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 40A
Power - Max:	349 W
Switching Energy:	920µJ (on), 300µJ (off)
Input Type:	Standard
Gate Charge:	180 nC
Td (on/off) @ 25°C:	18ns/110ns
Test Condition:	400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr):	47 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3
