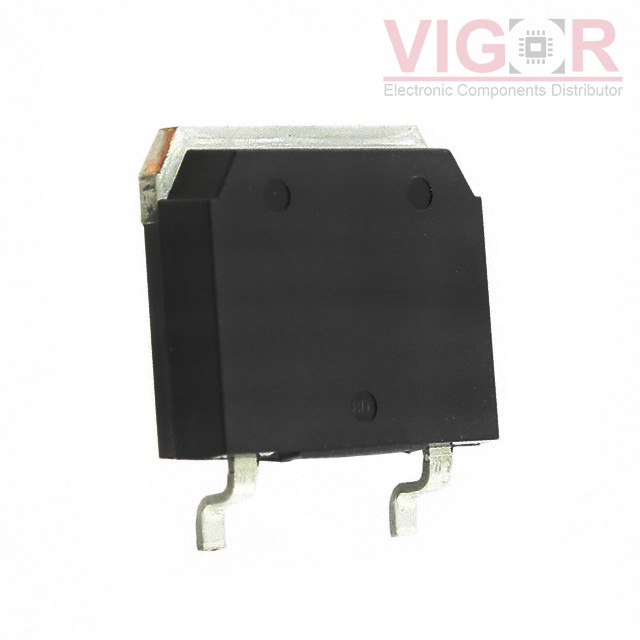

IXBT20N360HV

Part No :: IXBT20N360HV

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2915431

Description: IGBT 3600V 70A TO-268HV

Catalog: Transistors - IGBTs - Single

DataSheet: IXBT20N360HV PDF

Country of origin: -

Date code: -

IXBT20N360HV Specifications

Type	Description
Series:	BIMOSFET™
Package:	Tube
Part Status:	Not For New Designs
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	3600 V
Current - Collector (Ic) (Max):	70 A
Current - Collector Pulsed (Icm):	220 A
Vce(on) (Max) @ Vge, Ic:	3.4V @ 15V, 20A
Power - Max:	430 W
Switching Energy:	15.5mJ (on), 4.3mJ (off)
Input Type:	Standard
Gate Charge:	110 nC
Td (on/off) @ 25°C:	18ns/238ns
Test Condition:	1500V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	1.7 µs
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:	TO-268
