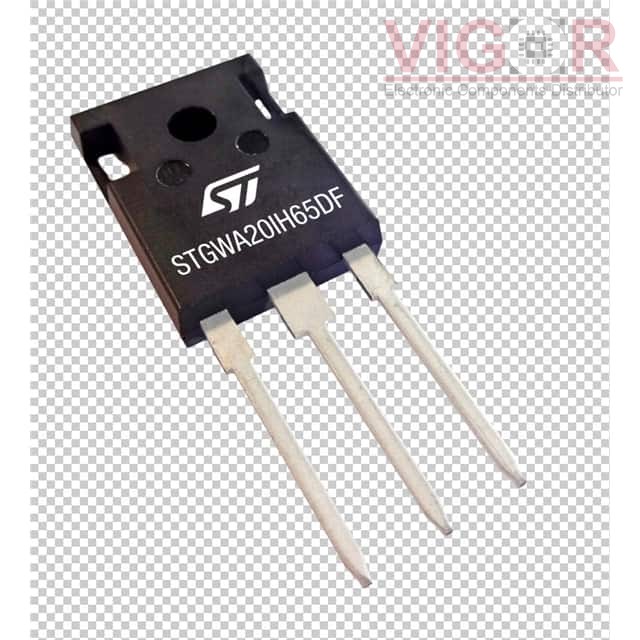

STGWA20IH65DF

Part No :: STGWA20IH65DF

Manufacturer: STMicroelectronics

VIGOR # :: 2915461

Description: TRENCH GATE FIELD-STOP 650 V, 20

Catalog: Transistors - IGBTs - Single

DataSheet: STGWA20IH65DF PDF

Country of origin: -

Date code: -

STGWA20IH65DF Specifications

Type	Description
Series:	IH
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.05V @ 15V, 20A
Power - Max:	159 W
Switching Energy:	110µJ (off)
Input Type:	Standard
Gate Charge:	56 nC
Td (on/off) @ 25°C:	-/120ns
Test Condition:	400V, 20A, 22Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 98

Shipped from

HK warehouse

Expected Shipping Date

May 21 - May 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.0900~~	~~$3.09~~

Current price of STGWA20IH65DF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

STGFW80V60F

IGBT 600V 120A 79W TO-3PF

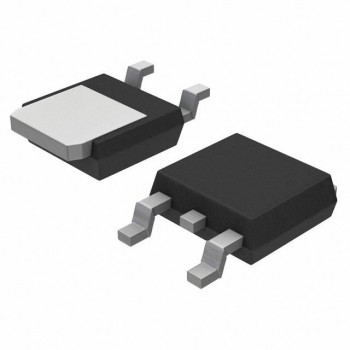

FGD3050G2V

IGBT 500V 27A DPAK-3

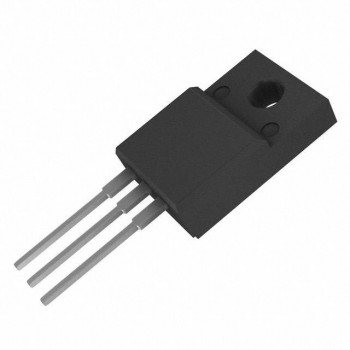

AOTF10B60D
