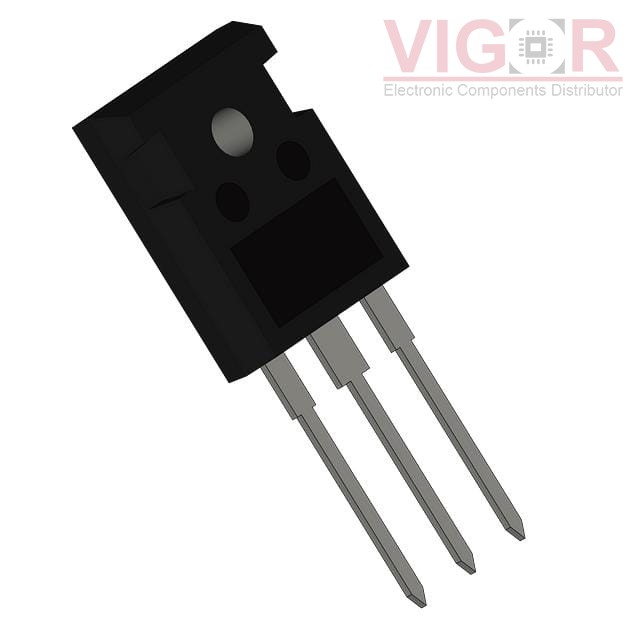

SGW20N60HS

Part No :: SGW20N60HS

Manufacturer: VIGOR

VIGOR # :: 2915488

Description: IGBT, 36A, 600V, N-CHANNEL

Catalog: Transistors - IGBTs - Single

DataSheet: SGW20N60HS PDF

Country of origin: -

Date code: -

SGW20N60HS Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
IGBT Type:	NPT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	36 A
Current - Collector Pulsed (Icm):	80 A
Vce(on) (Max) @ Vge, Ic:	3.15V @ 15V, 20A
Power - Max:	178 W
Switching Energy:	690µJ
Input Type:	Standard
Gate Charge:	100 nC
Td (on/off) @ 25°C:	18ns/207ns
Test Condition:	400V, 20A, 16Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	PG-TO247-3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1770

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.80~~	~~$1.80~~

Current price of SGW20N60HS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

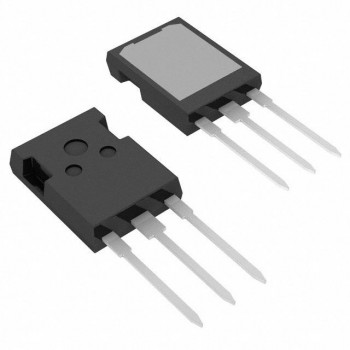

IXYX100N120C3

IGBT 1200V 188A 1150W PLUS247

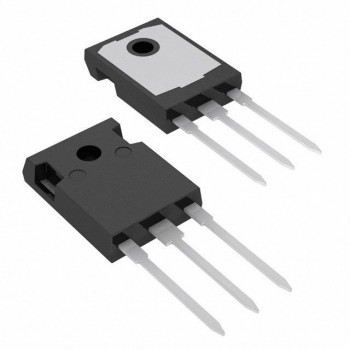

STGWA60H65DFB
