STGW10M65DF2

Part No :: STGW10M65DF2

Manufacturer: STMicroelectronics

VIGOR # :: 2915550

Description: TRENCH GATE FIELD-STOP IGBT M SE

Catalog: Transistors - IGBTs - Single

DataSheet: STGW10M65DF2 PDF

Country of origin: -

Date code: -

STGW10M65DF2 Specifications

Type	Description
Series:	M
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	20 A
Current - Collector Pulsed (Icm):	40 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 10A
Power - Max:	115 W
Switching Energy:	120µJ (on), 270µJ (off)
Input Type:	Standard
Gate Charge:	28 nC
Td (on/off) @ 25°C:	19ns/91ns
Test Condition:	400V, 10A, 22Ohm, 15V
Reverse Recovery Time (trr):	96 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1198

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.88~~	~~$1.88~~
10	~~$1.69~~	~~$16.88~~
100	~~$1.36~~	~~$135.63~~
500	~~$1.11~~	~~$557.18~~
1200	~~$0.92~~	~~$1 107.98~~
3600	~~$0.86~~	~~$3 094.74~~
6000	~~$0.85~~	~~$5 094.18~~

Current price of STGW10M65DF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

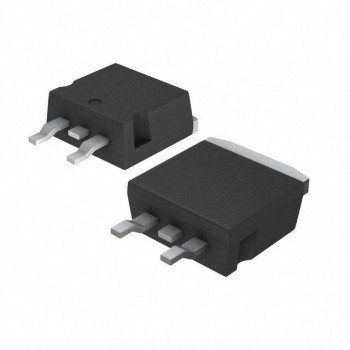

STGB20NB37LZT4

IGBT 425V 40A 200W D2PAK

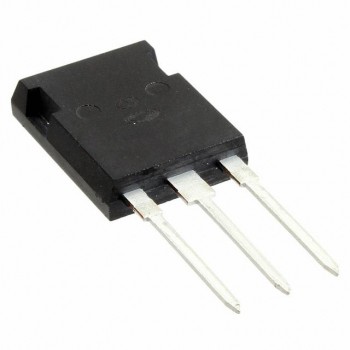

APT64GA90B

IGBT 900V 117A 500W TO247

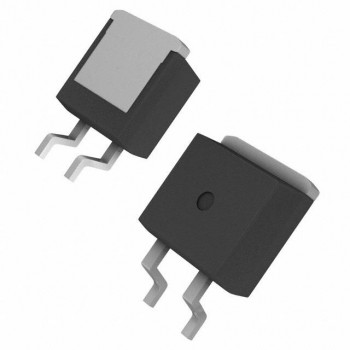

IXGA20N120B3
