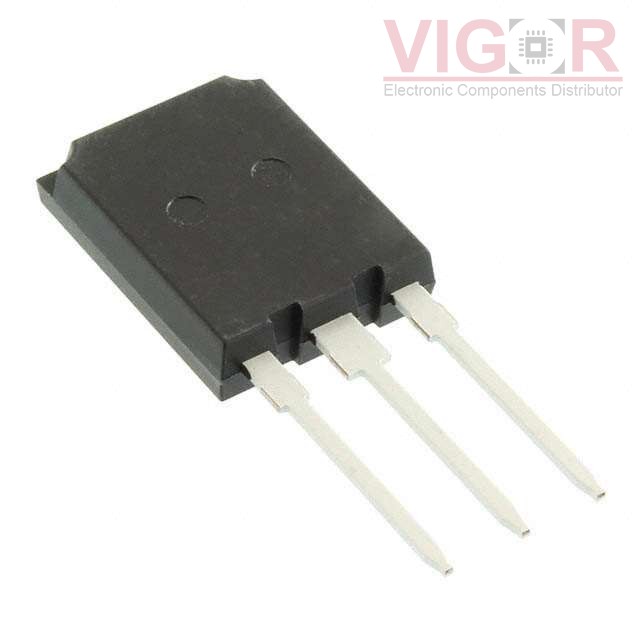

IKQ75N120CS6XKSA1

IKQ75N120CS6XKSA1 Specifications

Type	Description
Series:	TrenchStop™
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	150 A
Current - Collector Pulsed (Icm):	300 A
Vce(on) (Max) @ Vge, Ic:	2.15V @ 15V, 75A
Power - Max:	880 W
Switching Energy:	5.15mJ (on), 2.95mJ (off)
Input Type:	Standard
Gate Charge:	530 nC
Td (on/off) @ 25°C:	34ns/300ns
Test Condition:	600V, 75A, 4Ohm, 15V
Reverse Recovery Time (trr):	440 ns
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	PG-TO247-3-46
