IXYX40N450HV

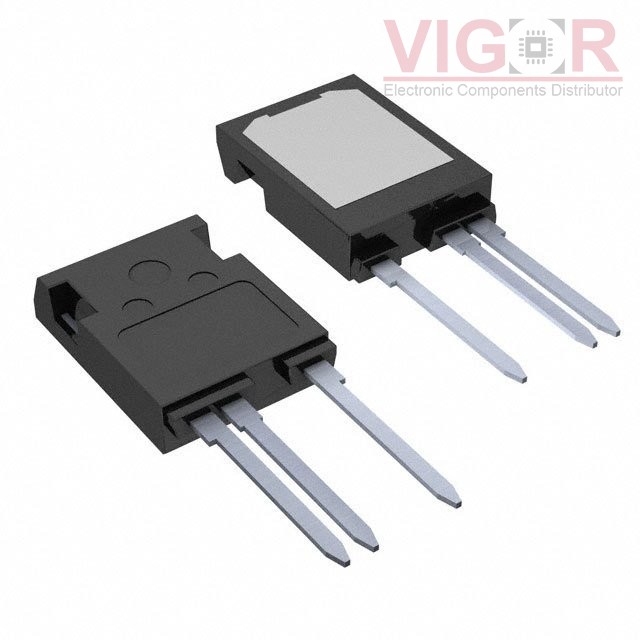

Product image
Product thumb
Part No :

IXYX40N450HV

Manufacturer
Wickmann / Littelfuse
VIGOR # :

2915640

Description
IGBT
Catalog
Transistors - IGBTs - Single
DataSheet
IXYX40N450HV PDF
Country of origin
-
Date code
-
ads
IXYX40N450HV Specifications
Type Description
Series:XPT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):4500 V
Current - Collector (Ic) (Max):95 A
Current - Collector Pulsed (Icm):350 A
Vce(on) (Max) @ Vge, Ic:3.9V @ 15V, 40A
Power - Max:660 W
Switching Energy:-
Input Type:Standard
Gate Charge:170 nC
Td (on/off) @ 25°C:36ns/110ns
Test Condition:960V, 40A, 2Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3 Variant
Supplier Device Package:TO-247PLUS-HV
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 252210
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $55.22 $55.22
30 $48.89 $1 466.67

Current price of IXYX40N450HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
