FGH40T120SMDL4

FGH40T120SMDL4

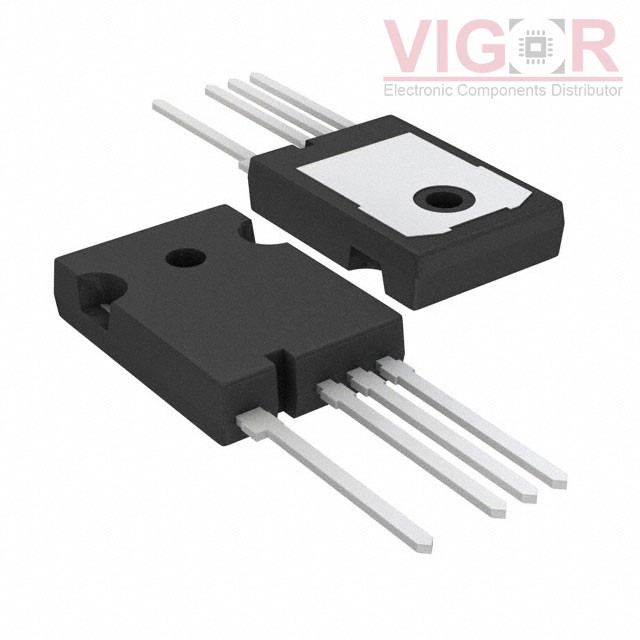

Image is for reference,
please contact us to get the real picture

Part No :

FGH40T120SMDL4

Manufacturer
VIGOR
Description
INSULATED GATE BIPOLAR TRANSISTO
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Sep 30 - Oct 04 2025
DataSheet
FGH40T120SMDL4 PDF
Availability
450 pieces
Unit Price
$7.07000

Current price of FGH40T120SMDL4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FGH40T120SMDL4 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1.2 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.4V @ 15V, 40A
Power - Max:555 W
Switching Energy:2.24mJ (on), 1.02mJ (off)
Input Type:Standard
Gate Charge:370 nC
Td (on/off) @ 25°C:44ns/464ns
Test Condition:600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):65 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:TO-247
