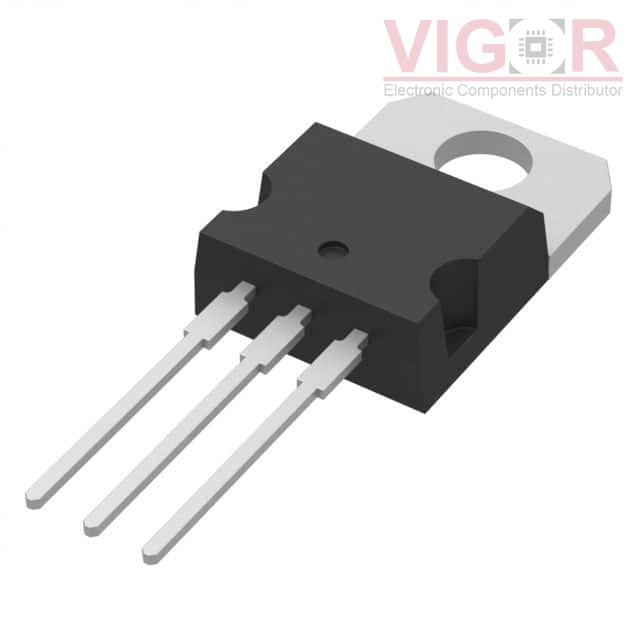

STGP15M120F3

Part No :: STGP15M120F3

Manufacturer: STMicroelectronics

VIGOR # :: 2915791

Description: TRENCH GATE FIELD-STOP, 1200 V,

Catalog: Transistors - IGBTs - Single

DataSheet: STGP15M120F3 PDF

Country of origin: -

Date code: -

STGP15M120F3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	30 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 15A
Power - Max:	259 W
Switching Energy:	550µJ (on), 850µJ (off)
Input Type:	Standard
Gate Charge:	53 nC
Td (on/off) @ 25°C:	26ns/122ns
Test Condition:	600V, 15A, 22Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220
