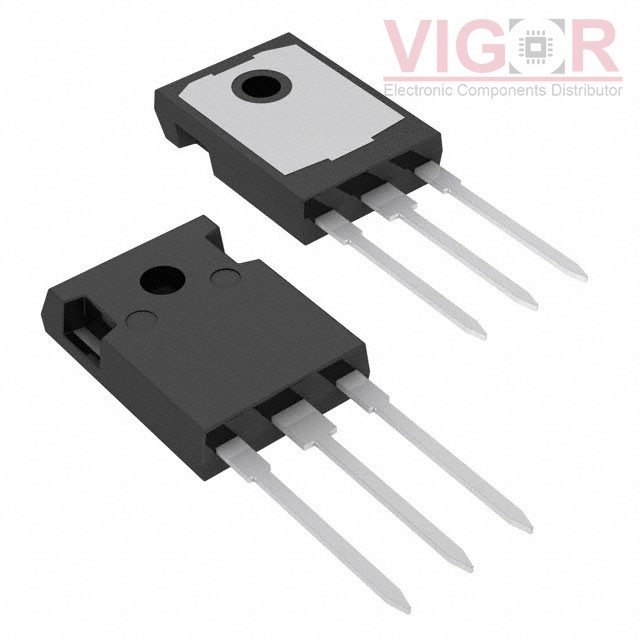

STGWA20HP65FB2

Part No :: STGWA20HP65FB2

Manufacturer: STMicroelectronics

VIGOR # :: 2915855

Description: TRENCH GATE FIELD-STOP 650 V, 20

Catalog: Transistors - IGBTs - Single

DataSheet: STGWA20HP65FB2 PDF

Country of origin: -

Date code: -

STGWA20HP65FB2 Specifications

Type	Description
Series:	HB2
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 20A
Power - Max:	147 W
Switching Energy:	214µJ (off)
Input Type:	Standard
Gate Charge:	56 nC
Td (on/off) @ 25°C:	-/78.8ns
Test Condition:	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	140 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247 Long Leads
