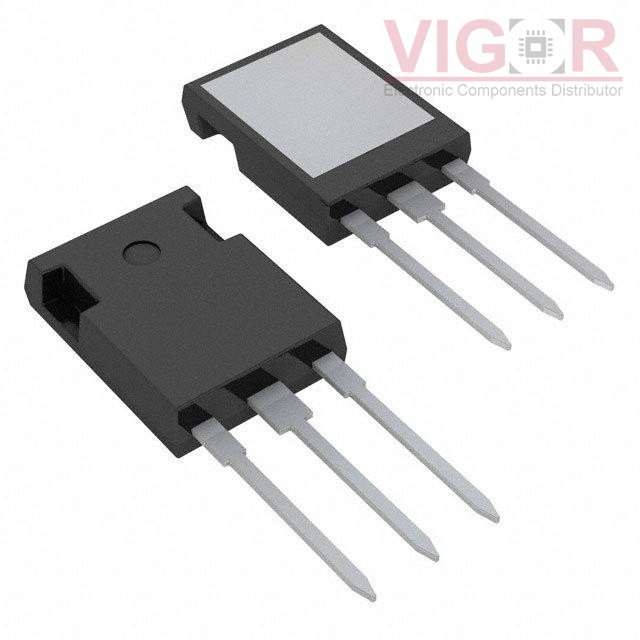

IXGR55N120A3H1

Part No :: IXGR55N120A3H1

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2915866

Description: IGBT 1200V 70A 200W ISOPLUS247

Catalog: Transistors - IGBTs - Single

DataSheet: IXGR55N120A3H1 PDF

Country of origin: -

Date code: -

IXGR55N120A3H1 Specifications

Type	Description
Series:	GenX3™
Package:	Tube
Part Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	70 A
Current - Collector Pulsed (Icm):	330 A
Vce(on) (Max) @ Vge, Ic:	2.35V @ 15V, 55A
Power - Max:	200 W
Switching Energy:	5.1mJ (on), 13.3mJ (off)
Input Type:	Standard
Gate Charge:	185 nC
Td (on/off) @ 25°C:	23ns/365ns
Test Condition:	960V, 55A, 3Ohm, 15V
Reverse Recovery Time (trr):	200 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	ISOPLUS247™
