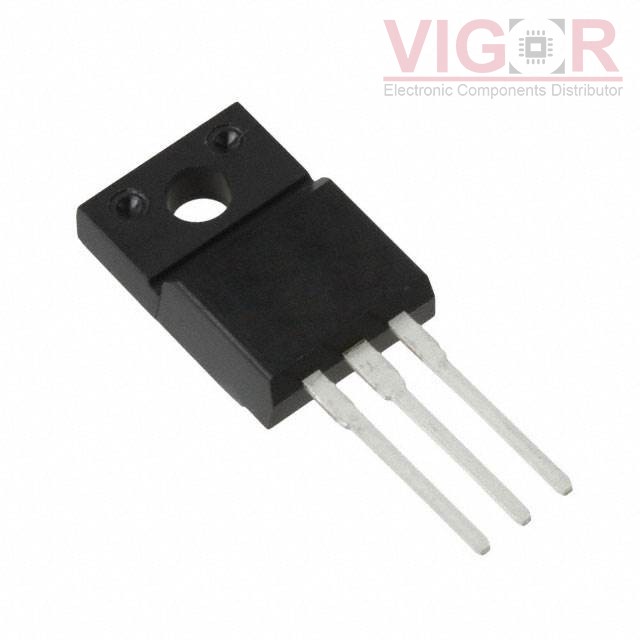

IGA03N120H2XKSA1

Part No :: IGA03N120H2XKSA1

Manufacturer: VIGOR

VIGOR # :: 2915902

Description: INSULATED GATE BIPOLAR TRANSISTO

Catalog: Transistors - IGBTs - Single

DataSheet: IGA03N120H2XKSA1 PDF

Country of origin: -

Date code: -

IGA03N120H2XKSA1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1.2 V
Current - Collector (Ic) (Max):	3 A
Current - Collector Pulsed (Icm):	9 A
Vce(on) (Max) @ Vge, Ic:	2.8V @ 15V, 3A
Power - Max:	29 W
Switching Energy:	290µJ
Input Type:	Standard
Gate Charge:	8.6 nC
Td (on/off) @ 25°C:	9.2ns/281ns
Test Condition:	800V, 3A, 82Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	PG-TO220-3
