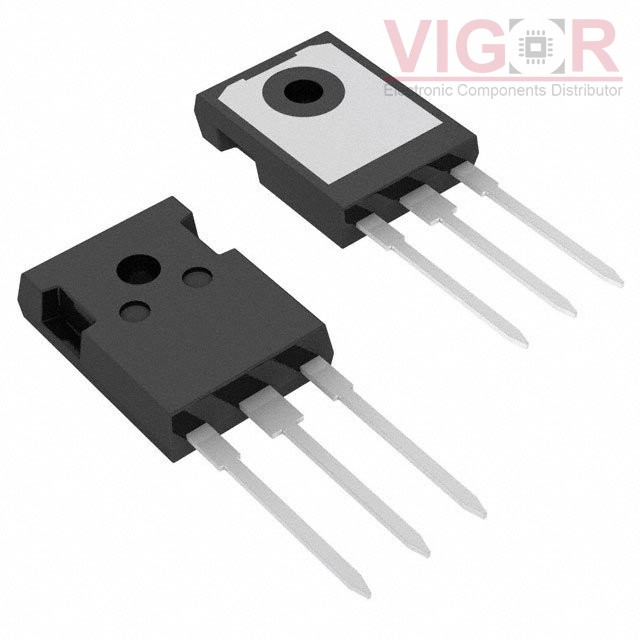

IXSH45N120

Part No :: IXSH45N120

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4588291

Description: IGBT 1200V 75A 300W TO247AD

Catalog: Transistors - IGBTs - Single

DataSheet: IXSH45N120 PDF

Country of origin: -

Date code: -

IXSH45N120 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	75 A
Current - Collector Pulsed (Icm):	180 A
Vce(on) (Max) @ Vge, Ic:	3V @ 15V, 45A
Power - Max:	300 W
Switching Energy:	21mJ (off)
Input Type:	Standard
Gate Charge:	150 nC
Td (on/off) @ 25°C:	80ns/400ns
Test Condition:	960V, 45A, 2.7Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD (IXSH)
