Part No :

NGTB40N60FL2WG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
VIGOR # :

4588358

Description
IGBT 600V 80A 366W TO247
Catalog
Transistors - IGBTs - Single
DataSheet
NGTB40N60FL2WG PDF
Country of origin
-
Date code
-
ads
Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 40A
Power - Max:366 W
Switching Energy:970µJ (on), 440µJ (off)
Input Type:Standard
Gate Charge:170 nC
Td (on/off) @ 25°C:84ns/177ns
Test Condition:400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):72 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Jan 19 - Jan 23 2026
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of NGTB40N60FL2WG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

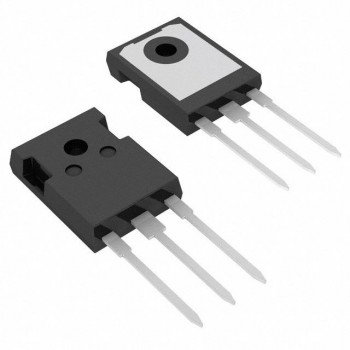

IXSH30N60AU1

IXSH30N60AU1

IGBT 600V 50A 200W TO247

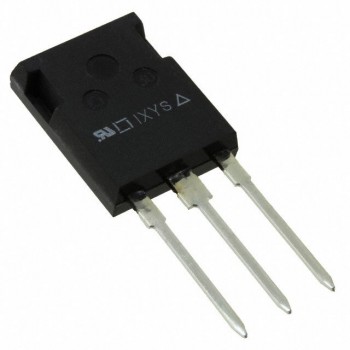

IXGR39N60BD1
