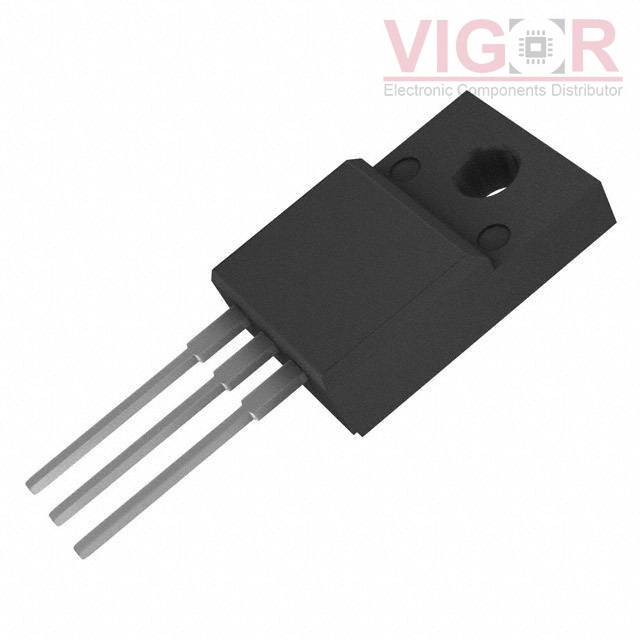

SGF23N60UFDTU

Part No :: SGF23N60UFDTU

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4588457

Description: IGBT 600V 23A 75W TO3PF

Catalog: Transistors - IGBTs - Single

DataSheet: SGF23N60UFDTU PDF

Country of origin: -

Date code: -

SGF23N60UFDTU Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	23 A
Current - Collector Pulsed (Icm):	92 A
Vce(on) (Max) @ Vge, Ic:	2.6V @ 15V, 12A
Power - Max:	75 W
Switching Energy:	115µJ (on), 135µJ (off)
Input Type:	Standard
Gate Charge:	49 nC
Td (on/off) @ 25°C:	17ns/60ns
Test Condition:	300V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr):	60 ns
Operating Temperature:	-
Mounting Type:	Through Hole
Package / Case:	TO-3P-3 Full Pack
Supplier Device Package:	TO-3PF
