RJH60D0DPM-00#T1

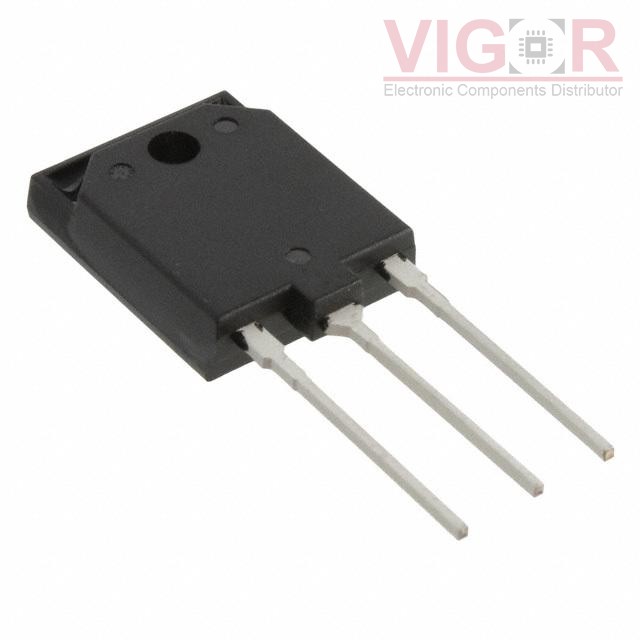

Image is for reference,
please contact us to get the real picture

Part No :: RJH60D0DPM-00#T1

Manufacturer: Renesas Electronics America

Description: IGBT 600V 45A 40W TO3PFM

Catalog: Transistors - IGBTs - Single

DataSheet: RJH60D0DPM-00#T1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of RJH60D0DPM-00#T1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RJH60D0DPM-00#T1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	45 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	2.2V @ 15V, 22A
Power - Max:	40 W
Switching Energy:	230µJ (on), 290µJ (off)
Input Type:	Standard
Gate Charge:	46 nC
Td (on/off) @ 25°C:	40ns/80ns
Test Condition:	300V, 22A, 5Ohm, 15V
Reverse Recovery Time (trr):	100 ns
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3PFM, SC-93-3
Supplier Device Package:	TO-3PFM
