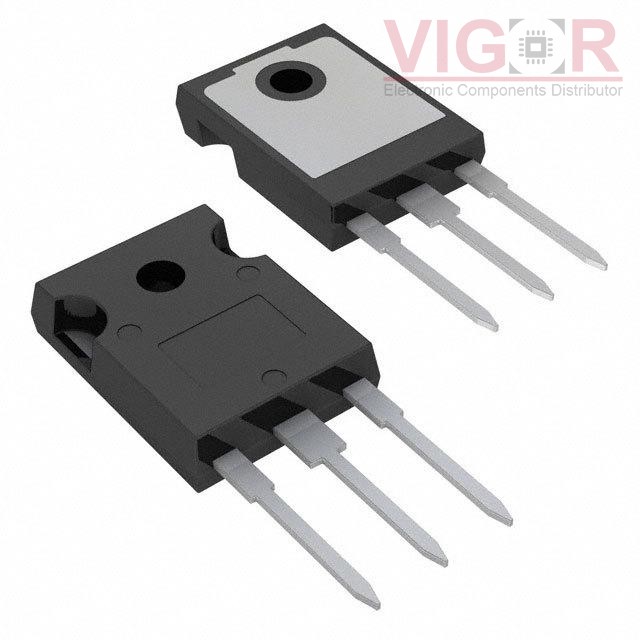

IRG7PH42UD1PBF

Part No :: IRG7PH42UD1PBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4588535

Description: IGBT 1200V 85A 313W TO247AC

Catalog: Transistors - IGBTs - Single

DataSheet: IRG7PH42UD1PBF PDF

Country of origin: -

Date code: -

IRG7PH42UD1PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	85 A
Current - Collector Pulsed (Icm):	200 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 30A
Power - Max:	313 W
Switching Energy:	1.21mJ (off)
Input Type:	Standard
Gate Charge:	180 nC
Td (on/off) @ 25°C:	-/270ns
Test Condition:	600V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AC
