IXGH15N120BD1

Part No :: IXGH15N120BD1

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4588552

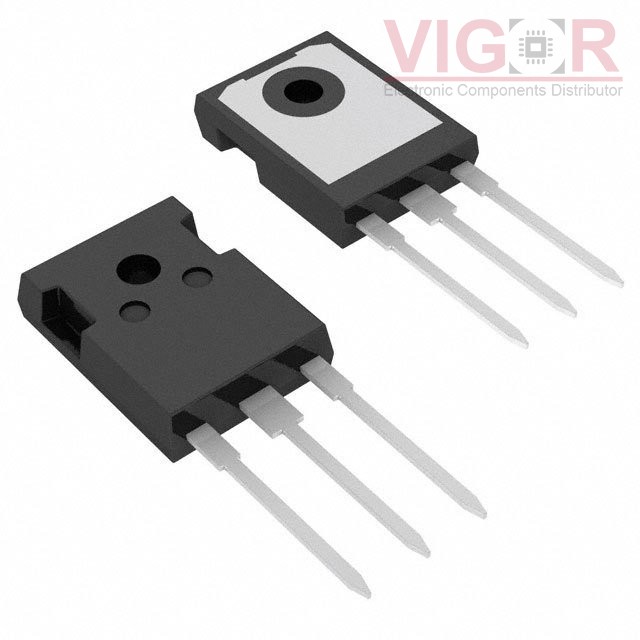

Description: IGBT 1200V 30A 150W TO247AD

Catalog: Transistors - IGBTs - Single

DataSheet: IXGH15N120BD1 PDF

Country of origin: -

Date code: -

IXGH15N120BD1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	30 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	3.2V @ 15V, 15A
Power - Max:	150 W
Switching Energy:	1.75mJ (off)
Input Type:	Standard
Gate Charge:	69 nC
Td (on/off) @ 25°C:	25ns/150ns
Test Condition:	960V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr):	40 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD (IXGH)
