IXGT20N120BD1

Part No :: IXGT20N120BD1

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4588561

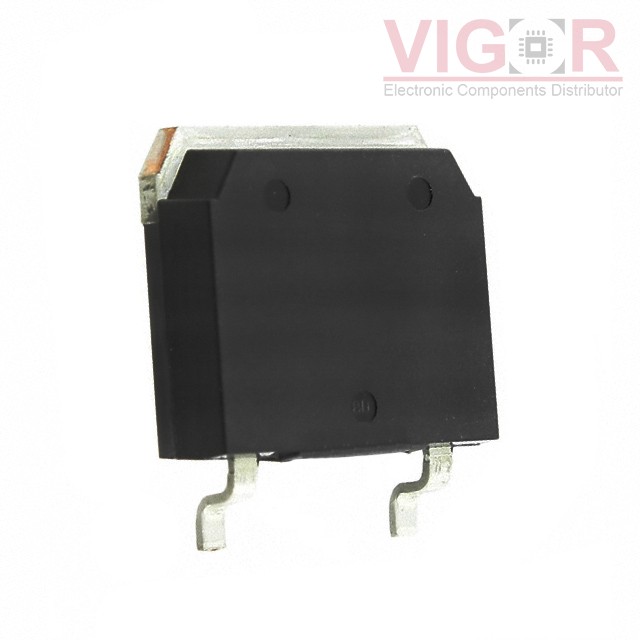

Description: IGBT 1200V 40A 190W TO268

Catalog: Transistors - IGBTs - Single

DataSheet: IXGT20N120BD1 PDF

Country of origin: -

Date code: -

IXGT20N120BD1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	100 A
Vce(on) (Max) @ Vge, Ic:	3.4V @ 15V, 20A
Power - Max:	190 W
Switching Energy:	2.1mJ (off)
Input Type:	Standard
Gate Charge:	72 nC
Td (on/off) @ 25°C:	25ns/150ns
Test Condition:	960V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	40 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package:	TO-268
