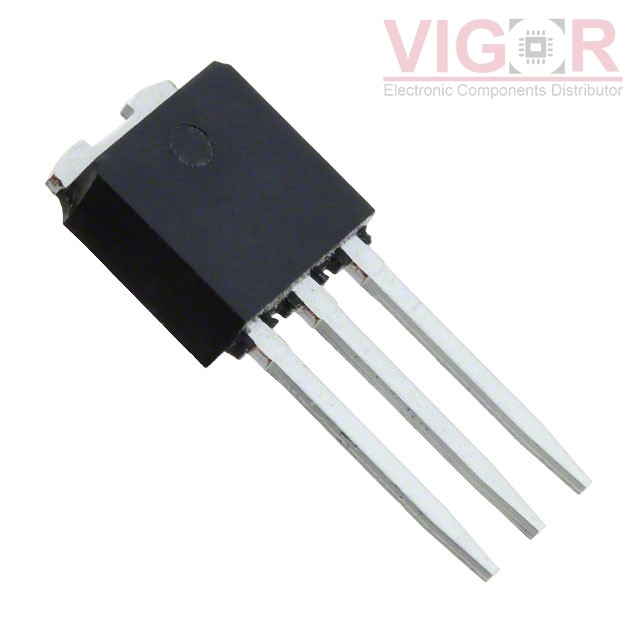

STGD7NB120S-1

Part No :: STGD7NB120S-1

Manufacturer: STMicroelectronics

VIGOR # :: 4588722

Description: IGBT 1200V 10A 55W IPAK

Catalog: Transistors - IGBTs - Single

DataSheet: STGD7NB120S-1 PDF

Country of origin: -

Date code: -

STGD7NB120S-1 Specifications

Type	Description
Series:	PowerMESH™
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	10 A
Current - Collector Pulsed (Icm):	20 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 7A
Power - Max:	55 W
Switching Energy:	15mJ (off)
Input Type:	Standard
Gate Charge:	29 nC
Td (on/off) @ 25°C:	570ns/-
Test Condition:	960V, 7A, 1kOhm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	I-PAK
