APT11GF120BRDQ1G

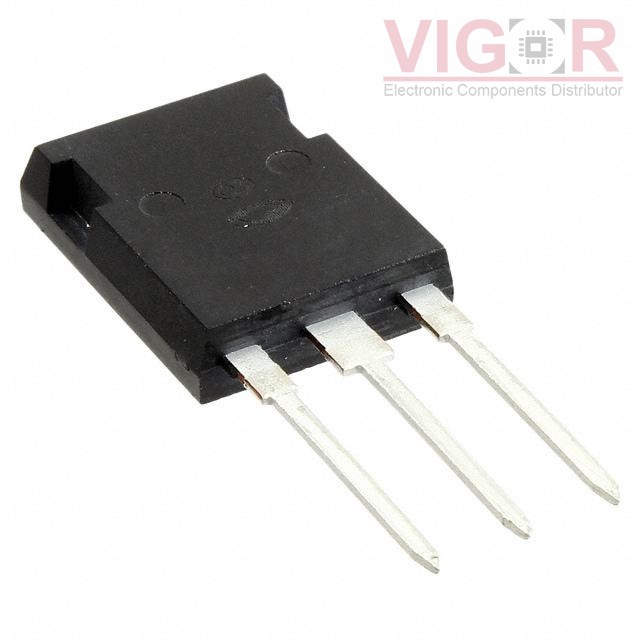

Product image
Product thumb
Part No :

APT11GF120BRDQ1G

Manufacturer
Microsemi
VIGOR # :

4588745

Description
IGBT 1200V 25A 156W TO247
Catalog
Transistors - IGBTs - Single
DataSheet
APT11GF120BRDQ1G PDF
Country of origin
-
Date code
-
ads
APT11GF120BRDQ1G Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:NPT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):25 A
Current - Collector Pulsed (Icm):24 A
Vce(on) (Max) @ Vge, Ic:3V @ 15V, 8A
Power - Max:156 W
Switching Energy:300µJ (on), 285µJ (off)
Input Type:Standard
Gate Charge:65 nC
Td (on/off) @ 25°C:7ns/100ns
Test Condition:800V, 8A, 10Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247 [B]
