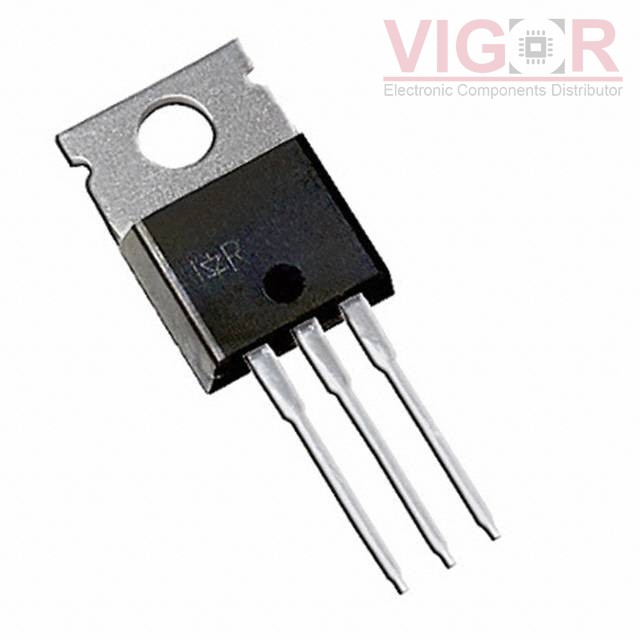

IRG4BC30U

Part No :: IRG4BC30U

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4588847

Description: IGBT 600V 23A 100W TO220AB

Catalog: Transistors - IGBTs - Single

DataSheet: IRG4BC30U PDF

Current price of IRG4BC30U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRG4BC30U Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	23 A
Current - Collector Pulsed (Icm):	92 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 12A
Power - Max:	100 W
Switching Energy:	160µJ (on), 200µJ (off)
Input Type:	Standard
Gate Charge:	50 nC
Td (on/off) @ 25°C:	17ns/78ns
Test Condition:	480V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220AB

Please confirm the specifications of the products when ordering.
