IRG4BC30FD-S

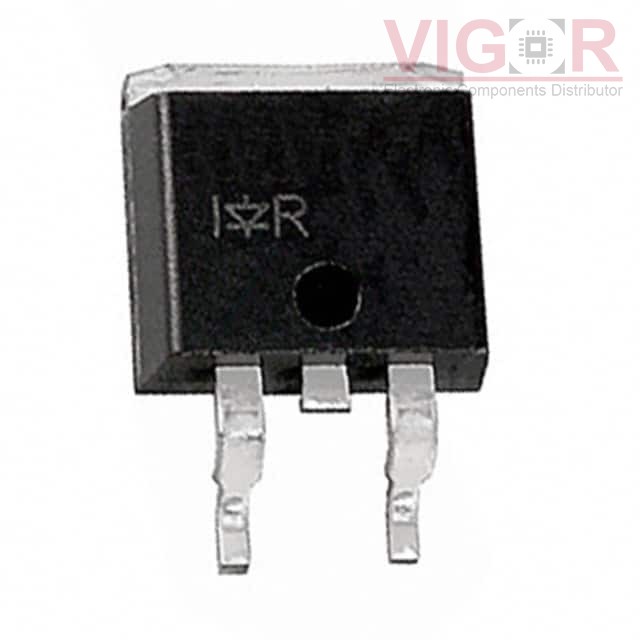

Image is for reference,
please contact us to get the real picture

Part No :: IRG4BC30FD-S

Manufacturer: IR (Infineon Technologies)

Description: IGBT 600V 31A 100W D2PAK

Catalog: Transistors - IGBTs - Single

DataSheet: IRG4BC30FD-S PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of IRG4BC30FD-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRG4BC30FD-S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	31 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	1.8V @ 15V, 17A
Power - Max:	100 W
Switching Energy:	630µJ (on), 1.39mJ (off)
Input Type:	Standard
Gate Charge:	51 nC
Td (on/off) @ 25°C:	42ns/230ns
Test Condition:	480V, 17A, 23Ohm, 15V
Reverse Recovery Time (trr):	42 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK

Please confirm the specifications of the products when ordering.
