IRG4RC20FTRL

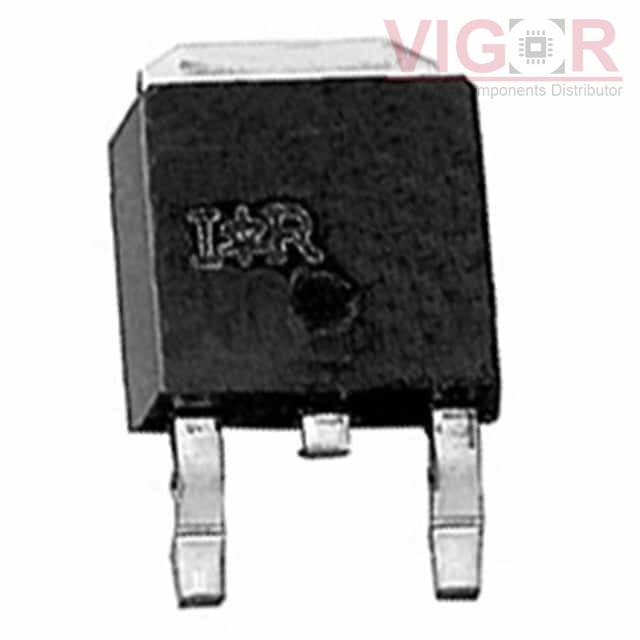

Image is for reference,
please contact us to get the real picture

Part No :: IRG4RC20FTRL

Manufacturer: IR (Infineon Technologies)

Description: IGBT 600V 22A 66W DPAK

Catalog: Transistors - IGBTs - Single

DataSheet: IRG4RC20FTRL PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of IRG4RC20FTRL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRG4RC20FTRL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	22 A
Current - Collector Pulsed (Icm):	44 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 12A
Power - Max:	66 W
Switching Energy:	190µJ (on), 920µJ (off)
Input Type:	Standard
Gate Charge:	27 nC
Td (on/off) @ 25°C:	26ns/194ns
Test Condition:	480V, 12A, 50Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	D-Pak

Please confirm the specifications of the products when ordering.
