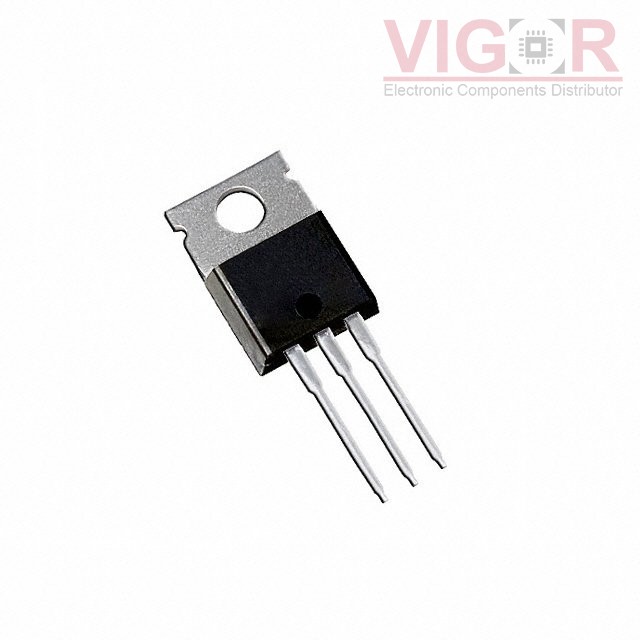

IRGB5B120KDPBF

Part No :: IRGB5B120KDPBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4588953

Description: IGBT 1200V 12A 89W TO220AB

Catalog: Transistors - IGBTs - Single

DataSheet: IRGB5B120KDPBF PDF

Country of origin: -

Date code: -

IRGB5B120KDPBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	NPT
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	12 A
Current - Collector Pulsed (Icm):	24 A
Vce(on) (Max) @ Vge, Ic:	3V @ 15V, 6A
Power - Max:	89 W
Switching Energy:	390µJ (on), 330µJ (off)
Input Type:	Standard
Gate Charge:	25 nC
Td (on/off) @ 25°C:	22ns/100ns
Test Condition:	600V, 6A, 50Ohm, 15V
Reverse Recovery Time (trr):	160 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220AB
