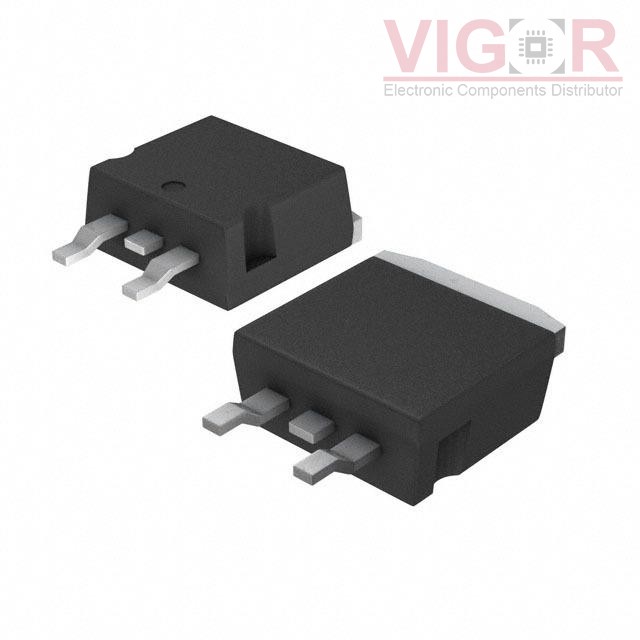

STGB7NB60KDT4

Part No :: STGB7NB60KDT4

Manufacturer: STMicroelectronics

VIGOR # :: 4589020

Description: IGBT 600V 14A 80W D2PAK

Catalog: Transistors - IGBTs - Single

DataSheet: STGB7NB60KDT4 PDF

Country of origin: -

Date code: -

STGB7NB60KDT4 Specifications

Type	Description
Series:	PowerMESH™
Package:	Tape & Reel (TR)
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	14 A
Current - Collector Pulsed (Icm):	56 A
Vce(on) (Max) @ Vge, Ic:	2.8V @ 15V, 7A
Power - Max:	80 W
Switching Energy:	140µJ (off)
Input Type:	Standard
Gate Charge:	32.7 nC
Td (on/off) @ 25°C:	15ns/50ns
Test Condition:	480V, 7A, 10Ohm, 15V
Reverse Recovery Time (trr):	50 ns
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
